Shot Group Analysis

Mark impacts on a target photo and calculate group size, dispersion, offset, MOA, and MRAD.

Access in the app: Available on the free plan.

Overview

What it does

Mark impacts on a target photo and calculate group size, dispersion, offset, MOA, and MRAD.

This guide covers the Shot Group Analysis workflow in SC Ballistics, including required values, units, results, and the actions available after calculation.

Tool workflow

Inputs and results

What you enter

Target distance, caliber, and firearm type
Target photo or generic target
Scale, aim point, and impact points

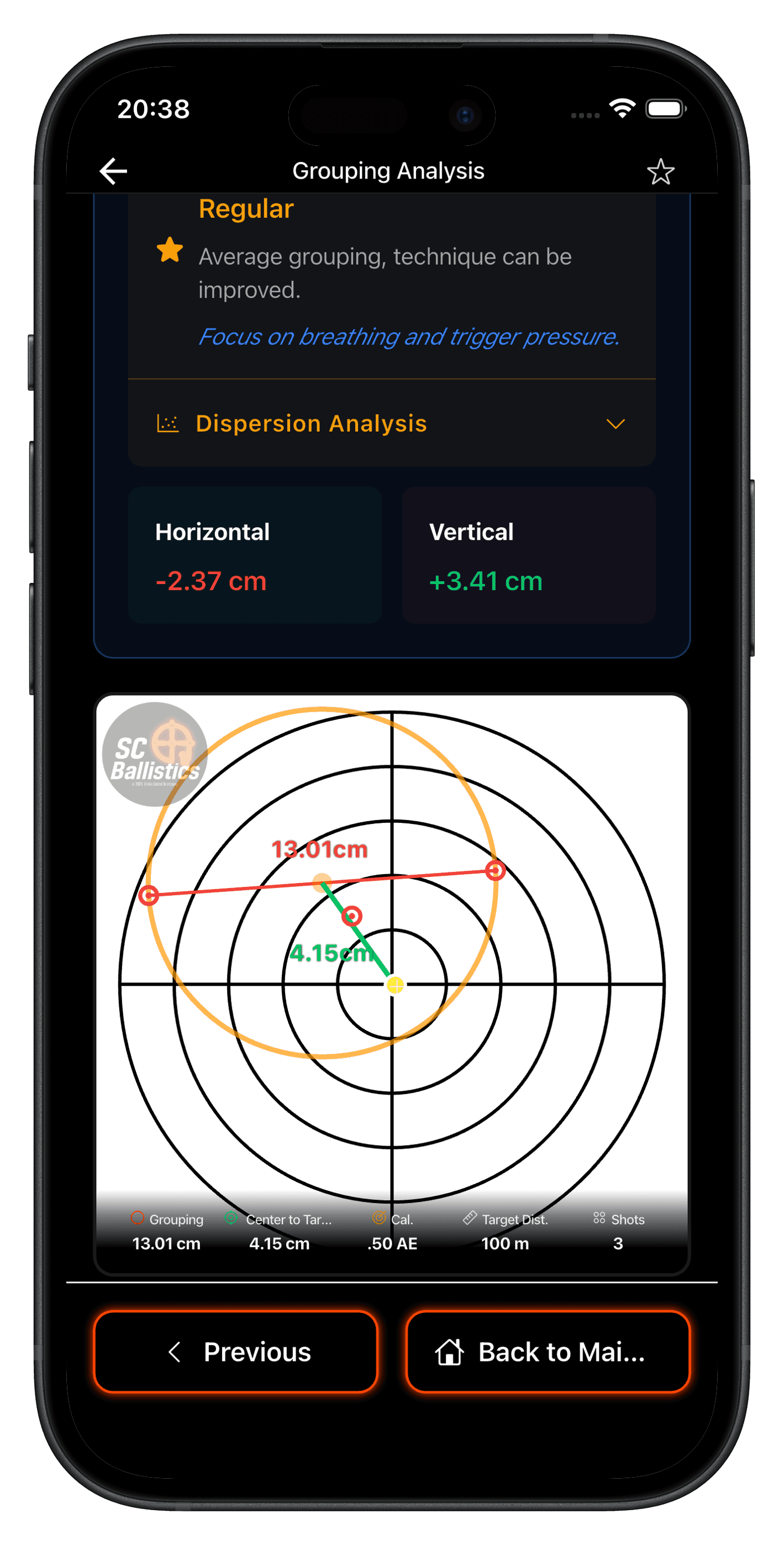

What the app returns

Group diameter in MOA and MRAD
Horizontal and vertical dispersion
Group offset, rating, and diagnostic

Tutorial in the app

How to use it in SC Ballistics

01
Open the tool
Open SC Ballistics, choose Ballistics, and select Shot Group Analysis.
02
Prepare the inputs
Enter the requested data: Target distance, caliber, and firearm type; Target photo or generic target; Scale, aim point, and impact points. Check every selected unit before continuing.
03
Run the workflow
Use the calculate, analyze, or save action shown on screen. Review validation messages before changing screens.
04
Review the result
Confirm the main outputs: Group diameter in MOA and MRAD; Horizontal and vertical dispersion; Group offset, rating, and diagnostic. Save or share the result when that action is available.

Before you finish

Good practices

Check measurement units and source data before calculating.
Follow range safety procedures and verify technical data with responsible manufacturers.

SC Ballistics is a support tool. Check all inputs, follow range safety procedures, and validate technical information with responsible sources and manufacturers.
